Materials
STANDARD POOL FILTER CARTRIGES

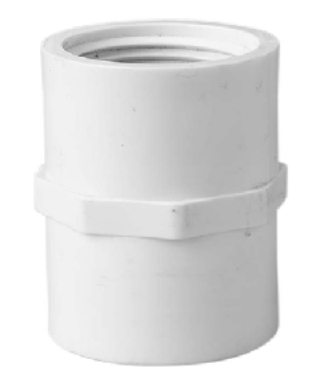

1/2" SCHEDULE PVC 40 COUPLING PART NO. FIPT X FIPT (430-005)
CAP
Filter Unit Material List

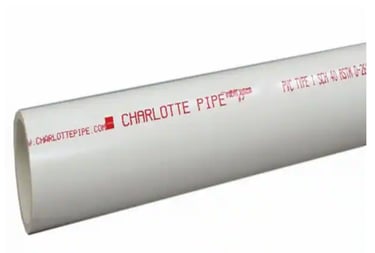

Charlotte pipe schedule 40
The cap should be attached to the inner pipe coupler using adhesive.

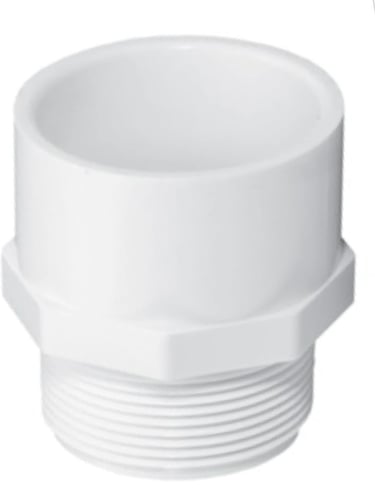

Pipe coupler with male threaded end
Do not glue threads.
Female threaded on one side
This can be found at Amazon,
www.pvcfittingsonline.com, pvcpipesupplies.com.
SCHEDULE PVC 40 MALE ADAPTOR
PVC PIPE with customized size
1-1/4" PVC pipe with customized five holes of 1/2 inch diameter the nearby of the bottom
It can be found at almost any hardware store.
You can cut five and a half inches long.

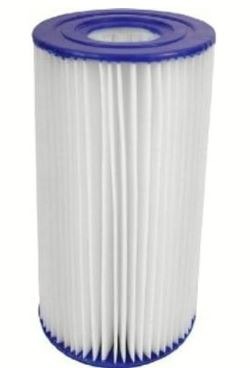

Type A or Type C standard pool filter
Common places of purchase include Amazon.
SCHEDULE PVC 40 MALE ADAPTOR
Pipe coupler with male threaded end
1/4 PVC pipe glue inside of Pipe coupler top

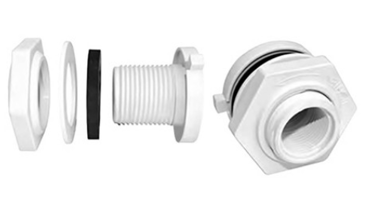

BULKHEAD FITTINGS

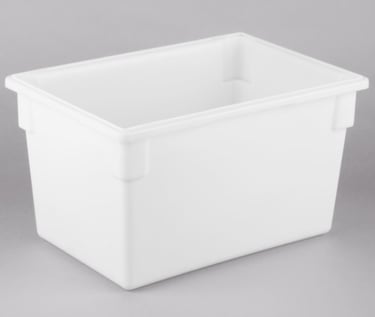

STANDARD PLASTIC FOOD TOTE (~ 4 GALLON)
Maximum 4 gallon
This can be purchased in many places including Amazon.
Siphon Unit Material List

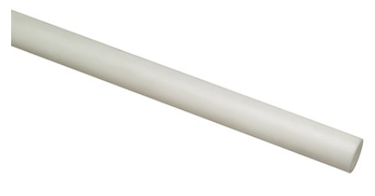

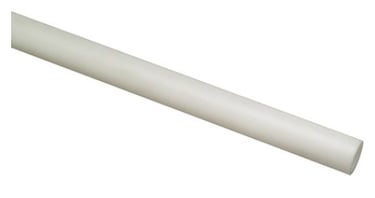

PVC PIPE with customized size
1/2" inch schedule 40 PVC pipe
It can be found at almost any hardware store including Amazon.
We need two parts, 1 inch long and 3.5 inches long. (You can cut it easily using a hand saw.)

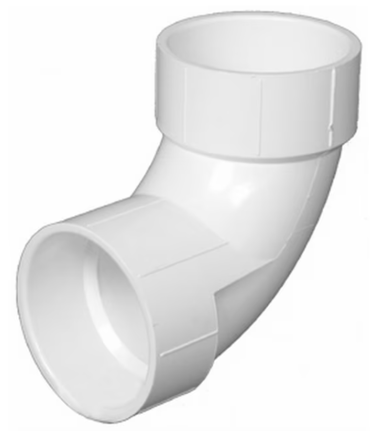

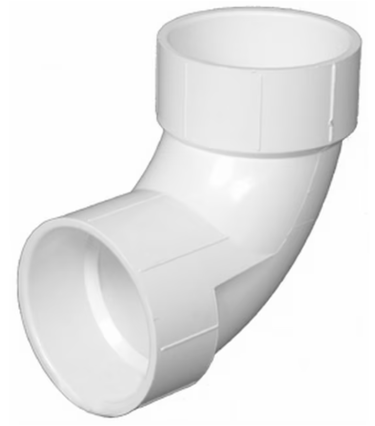

PVC PIPE ELBOW
1/2" inch schedule 40 PVC Socket 90 degree Sweep Elbow
It can be found at almost any hardware store including Amazon.
We need two parts, 1 inch long and 3.5 inches long. (You can cut it easily using a hand saw.)
If necessary, you can use a coupling for connecting socket by socket.
(If one wishes to not use PVC glue for portable water lines, it is possible to use a tapered pipe tap and die.)

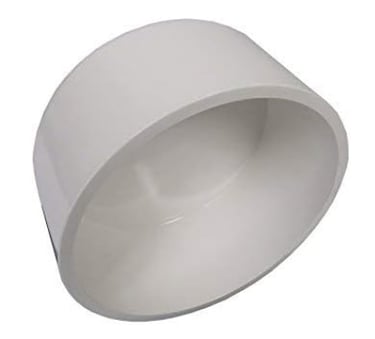

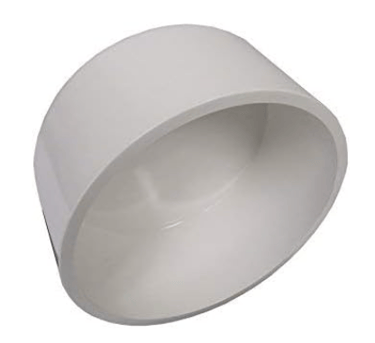

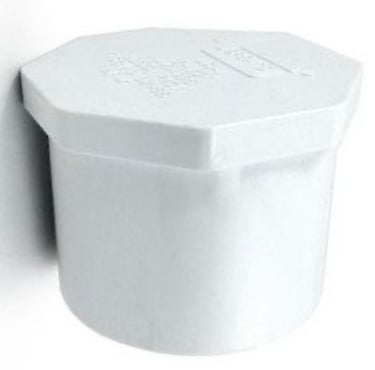

PVC PIPE CAP
4 inches schedule 40 cap

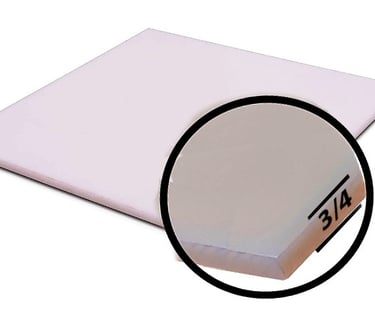

POLYPROPYLENE SHEET STOCK

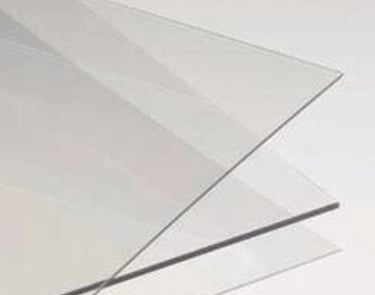

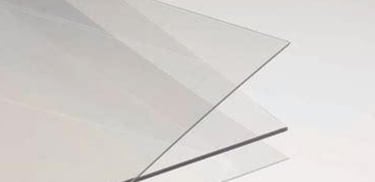

PETG PLASTIC SHEET STOCK

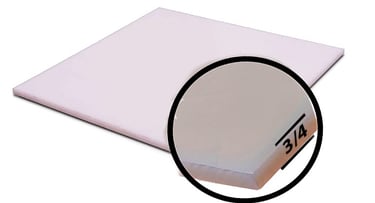

Three-quarter inch thick polypropylene sheet stock of size 1 foot by 1 foot.
Common places of purchase include Grainger, McMaster-Carr, or your local plastic supplier.
When ordering be sure the stock is truly 1 foot by 1 foot to the nearest 1/16 of an inch.. Grainger sometimes sells pieces that are approximate.
Dosing Unit Material List
One-quarter inch thick PETG clear plastic sheet stock of 1 foot by 1 foot size.
Common places of purchase include Grainger, McMaster-Carr, or your local plastic supplier.

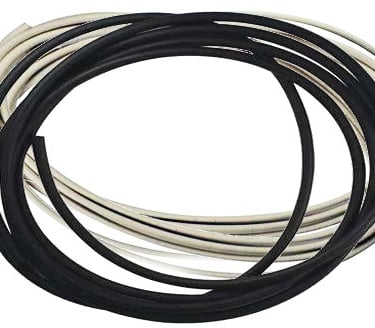

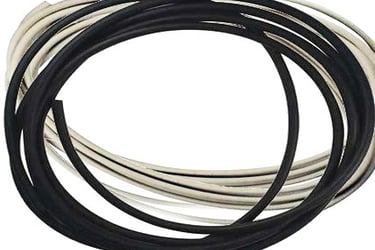

One-eighth inch flouroelastomer cord stock of 60A hardness or less. (The softer the better. Anything above 60A will not seal.)
This is sometimes referred to as FKM/FPM and Viton. It is chemical and chlorine resistant and can be special ordered in bulk or can be found at McMaster-Carr.
FLOUROELASTOMER ("VITON") CORD STOCK

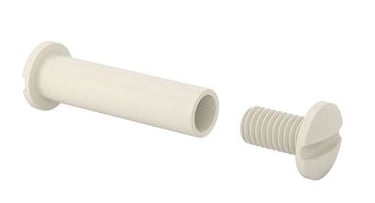

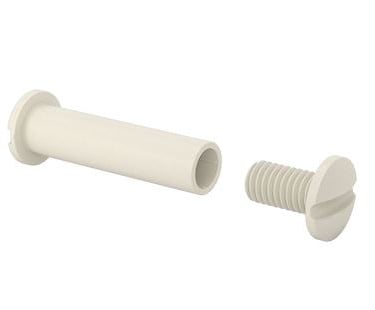

PLASTIC BARREL BINDING SCREWS OF POLYETHYLENE MATERIAL
One-quarter inch diameter, 1-inch long, barrel binding screw.)
This can be found at McMaster-Carr and is REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant and RoHS 3 (2015/863/EU) Compliant.

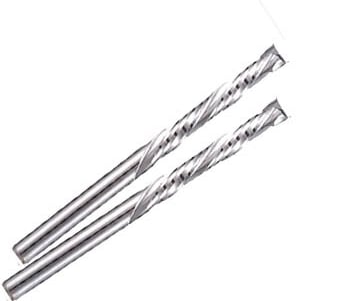

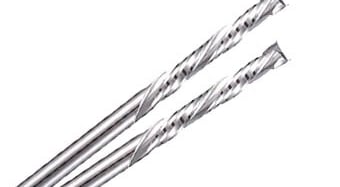

One-eighth inch diameter milling bit for plastic.
This can be purchased in many places including Amazon. Be sure it is for plastic and can work for 3/4-inch sheet stock.

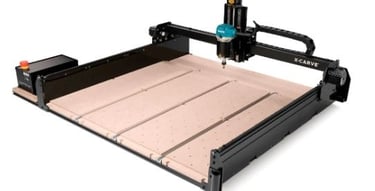

ACCESS TO CNC MACHINE
Access to a CNC machine. A reasonably precise and accurate table-top cnc machine will work
Three axis minimum (CNC) is required.

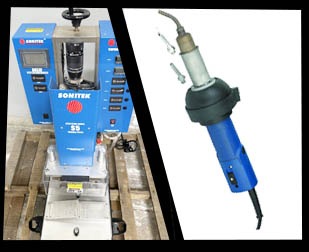

To plastic weld, a means to weld a hermetic seal is required. A ultrasonic press with a wide press attachment is ideal, but an air gun with a heavy weight and careful welder can work too if it is all that's available.
Sometimes local manufacturers will ultrasonic or friction weld one or two welds for free or for a small monetary tip. For them it may only take minutes if their machine is already set up..

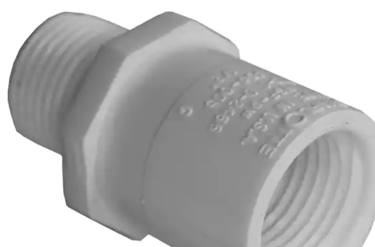

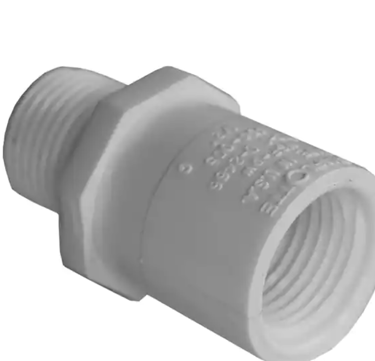

1/2 inch PVC Riser
(Two) 1/2 inch diameter PVC riser can be found at almost any hardware store. The threads will be straightened with a dye.
ACCESS TO HOT AIR GUN OR LARGE FRICTION WELDER

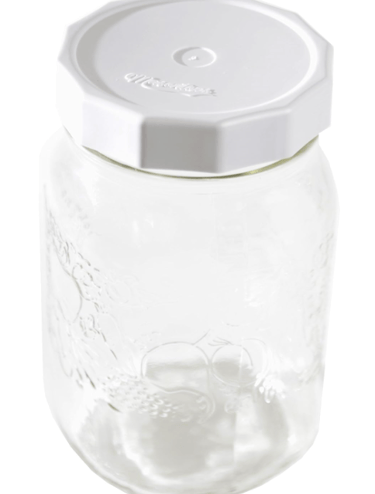

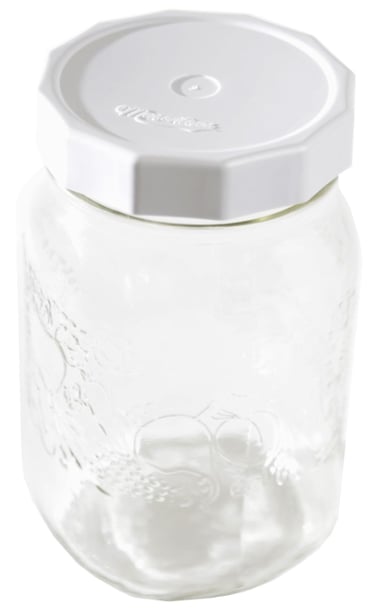

Bell or Mason Jar
1/2 gallon Bell or Mason Jar.

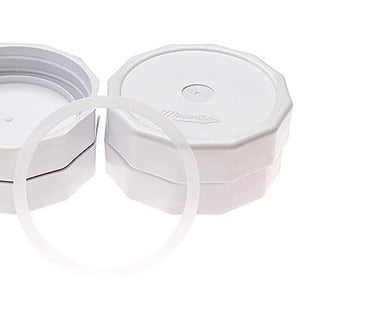

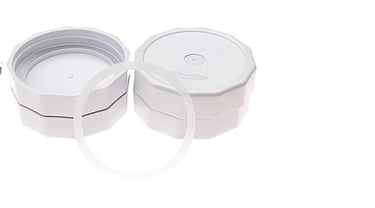

Strong plastic bell jar lid.
The best ball jar lid that I found was called "Tough Tops" plastic tops. If you used a thinner/weaker plastic lid, then it is likely to break.
MILLING BITS
MASON & BELL JAR
PVC RISER
STRONG THICK PLASTIC BELL JAR LID

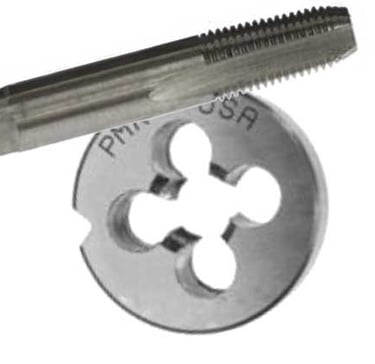

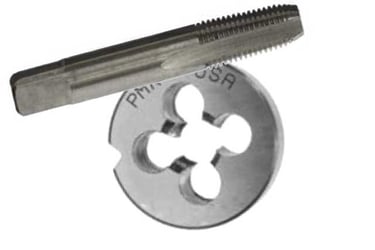

STRAIGHT TAP AND DYE
A quarter inch straight tap and dye are needed so the 1/4 plug can be threaded into the sheet stock.
Taps and dyes are often already at school shops or labs, but they can also be bought from a hardware tool shop or online.
